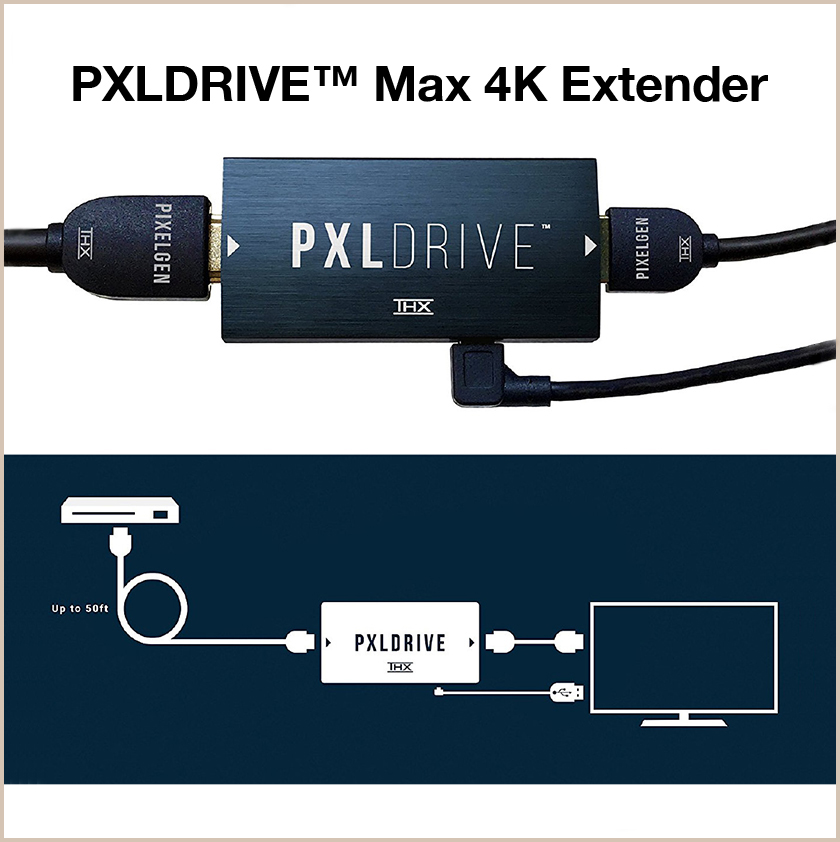

PXLDRIVE™ is a detachable dongle placed at the display end of a Ultra HD link with the ability to revive 100% truly uncompressed Ultra HD signals up to the maximum 18Gbps bitrate over new or pre-existing long reach Ultra HD cables.
Designed from the ground up in Canada, PXLDRIVE™ works by using an adaptive equalizer and re-timing block to maximize its effectiveness as a highly reliable, robust and interoperable Ultra HD signal extender.

• 18Gbps (4K60 8-bit 4:4:4) Ultra HD extension up to 20m using Pixelgen™ Max 4K Interconnect cable
• 18Gbps (4K60 8-bit 4:4:4) Ultra HD extension up to *15m using a pre-existing cable（* Ultra HD cable type）
• Dolby Vision High Dynamic Range compatible (4K60 12-bit 4:2:2 - 18Gbps)
• HDR10, HDR10+ & HLG compatible (4K60 10-bit 4:2:0 - 11.1Gbps)
• ARC, CEC 2.0 supported & HDCP 2.2/1.4 compatible
• Plug and Play (no external tuning required)
• Powered by a Ultra HD display using any available USB port
• Adaptive equalization ideal for retrofitting applications where cable length/type unknown


● 18Gbps (4K60 8-bit 4:4:4) 超高清扩展至20米使用 Pixelgen™4K互连电缆
● 18Gbps (4K60 8-bit 4:4:4) 超高清扩展使现有电缆可达*15m（*超高清电缆类型）
● 兼容杜比视界高动态范围 (4K60 12-bit 4:2:2 - 18Gbps)
● HDR10、HDR10+和HLG兼容(4K60 10-bit 4:2:0 - 11.1Gbps)
● 支持ARC、CEC 2.0，兼容HDCP 2.2/1.4
● 即插即用(无需外部调优)
● 由超高清显示屏供电，使用任何可用的USB端口
● 自适应均衡，非常适合改造电缆长度/类型未知的应用

/uploads/FCKeditor/files/SERIES%204%20(4K)%20-%20PXLDRIVE%20Extender%20-%20Product%20Brief.pdf

THX® INTERCONNECT
Ultra High Speed HDMI® Cable
(Long-reach Hybrid Optical Fiber/Copper)

Together with THX®, we are simplifying how HDMI® cables are purchased, installed, and enjoyed. Active intervention is required when copper is no longer a feasible option due to the 4-lane high-speed 12Gbps (48Gbps aggregate) FRL signal attenuation (over 5m).

There is a perfect fixed length for all long-reach applications at 7.6m/24.9ft, 10m/32.8ft and 15m/49.2ft using embedded Pixelgen PXLGLASS™ Hybrid Optical Fiber/Copper Technology. Pixelgen has designed the THX® Interconnect long-reach Ultra High Speed (UHS) HDMI® cables to uphold convenient overall thinness and flexibility while maintaining standards compliance and system robustness for each length. Never leave a single HDMI link to chance, especially the long ones!

HDMI® Certification
Ultra High Speed HDMI® Cable (0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, 2.0m/6.6ft, 3.0m/9.8ft, 5.0m/16.4ft)
Scannable UHS HDMI® label affixed to packaging (alongside HDMI® App)
—————————————————————————————————————————————————————————
THX® Certification
Validated to THX® Certified 8K Interconnect Standards (0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, 2.0m/6.6ft, 3.0m/9.8ft, 5.0m/16.4ft)
—————————————————————————————————————————————————————————
Max FRL (Fixed Rate Link)
12Gbps per lane (48Gbps Aggregate Bandwidth)
—————————————————————————————————————————————————————————
HDMI® 2.1 Features
Video: Up to 8K-10K BT.2020 Formats (Bandwidth/format details below),
Audio: eARC (Enhanced Audio Return Channel), Dolby Atmos, Dolby TrueHD, DTS:X, DTS Master
HDR: Dynamic (and Static) HDR, SBTM (Source-Based Tone Mapping)
Gaming: VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching)
Control: CEC (Consumer Electronics Control), HEC (HDMI Ethernet Channel)
Note: Backwards compatible to all previous HDMI standards
—————————————————————————————————————————————————————————
HDCP (High-bandwidth Digital Content Protection)
HDCP 2.2 & 2.3 (backwards compatible to HDCP 1.4)
—————————————————————————————————————————————————————————
FRL6 (48Gbps) Formats Supported
8K60 4:2:0 12-bit, 8K30 4:4:4 12-bit
4K120 4:4:4 12-bit
—————————————————————————————————————————————————————————
FRL5 (40Gbps) Formats Supported
10K60 4:2:0 8-bit, 10K30 4:2:2 8/12-bit, 10K30 4:4:4 8-bit
8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit
5K120 4:2:2 8/12-bit, 5K120 4:4:4 8-bit
4K120 4:4:4 10-bit
—————————————————————————————————————————————————————————
FRL4 (32Gbps) Formats Supported
10K30 4:2:0 10/12-bit
8K60 4:2:0 8-bit, 8K30 4:2:2 8/12-bit, 8K30 4:4:4 8-bit
5K120 4:2:0 10/12-bit, 5K60 4:4:4 10/12-bit
4K120 4:4:4 8-bit, 4K120 4:2:2 8/12-bit
—————————————————————————————————————————————————————————
FRL3 (24Gbps) Formats Supported
10K30 4:2:0 8-bit
8K30 4:2:0 10/12-bit
5K120 4:2:0 8-bit, 5K60 4:2:2 8/12-bit, 5K60 4:4:4 8-bit
4K120 4:2:0 10/12-bit, 4K120 4:2:0 10/12-bit
—————————————————————————————————————————————————————————
FRL2 (18Gbps) Formats Supported
8K30 4:2:0 8-bit
5K60 4:2:0 8/12-bit, 5K30 4:2:2 8/12-bit, 5K30 4:4:4 8/12-bit
4K120 4:2:0 8-bit, 4K60 4:2:0 10/12-bit, 4K60 4:2:2 8/12-bit, 4K60 4:4:4 8/12-bit, 4K30 4:4:4 10/12-bit
1080p120 4:4:4 10/12-bit
—————————————————————————————————————————————————————————
FRL1 (9Gbps) Formats Supported
4K60 4:2:0 8-bit, 4K30 4:2:2 8/12-bit, 4K30 4:4:4 8-bit
1080p120 4:2:2 8/12bit, 1080p120 4:4:4 8-bit
—————————————————————————————————————————————————————————
Mechanical/Construction
Directional Cable: Please note that Long-reach THX® Interconnect UHS HDMI® with PXLGLASS™ is a unidirectional cable. Cable ends labeled “SOURCE” (to attach to HDMI UHD Blu-ray, for example) & ”DISPLAY” (to attach to HDMI TV/Projector, for example)
Optical 4-core fiber: High-speed FRL Signalling
Copper (28-32AWG): DC(+5V/HPD) & Low-speed(DDC/CEC/HEAC)Copper (28-32AWG): DC(+5V/HPD) & Low-speed(DDC/CEC/HEAC)
Cable Diameter (OD): 7.6m, 10m & 15m - 6.2mm
HDMI Plugs: Gold-plated
HDMI Casing: Zinc Alloy
Retention Force (max): 3kg/6.6lbs
Bend Radius: 30mm (1.2 inches)
—————————————————————————————————————————————————————————
Regulatory Compliance
EMI/EMC/Safety: CE, UL
Environmental: RoHS, WEEE
ESD Rating: 8kV contact (IEC 61000-4-2 Level 2)
Lead-free (Pb-free)
—————————————————————————————————————————————————————————

/uploads/FCKeditor/files/THX%20Interconnect%20(Optical%20PXLGLASS)%20Ultra%20High%20Speed%20HDMI%20Cable%20-%20Product%20Brief(1).pdf

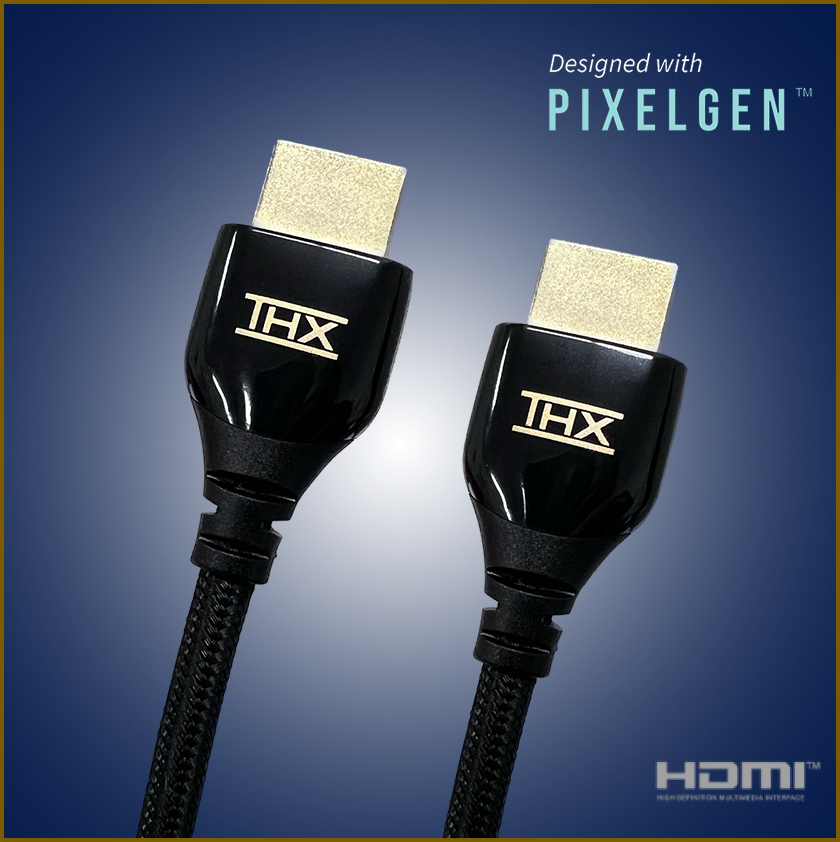

THX® INTERCONNECT
Ultra High Speed HDMI® Cable
(Short-range Copper)

Together with THX®, we are simplifying how short-range HDMI® cables are purchased, installed, and enjoyed. A perfect fixed length for all applications from 0.5m/1.6ft up to 5m/16.4ft (using 100% Copper wiring construct). Pixelgen has designed the THX® Interconnect short-range Ultra High Speed (UHS) HDMI® cables to uphold convenient overall thinness and flexibility while maintaining standards compliance and system robustness for each length. Never leave a single HDMI link to chance.

HDMI® Certification
Ultra High Speed HDMI® Cable (0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, 2.0m/6.6ft, 3.0m/9.8ft, 5.0m/16.4ft)
Scannable UHS HDMI® label affixed to packaging (alongside HDMI® App)
—————————————————————————————————————————————————————————
THX® Certification
Validated to THX® Certified 8K Interconnect Standards (0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, 2.0m/6.6ft, 3.0m/9.8ft, 5.0m/16.4ft)
—————————————————————————————————————————————————————————
Max FRL (Fixed Rate Link)
12Gbps per lane (48Gbps Aggregate Bandwidth)
—————————————————————————————————————————————————————————
HDMI® 2.1 Features
Video: Up to 8K-10K BT.2020 Formats (Bandwidth/format details below),
Audio: eARC (Enhanced Audio Return Channel), Dolby Atmos, Dolby TrueHD, DTS:X, DTS Master
HDR: Dynamic (and Static) HDR, SBTM (Source-Based Tone Mapping)
Gaming: VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching)
Control: CEC (Consumer Electronics Control), HEC (HDMI Ethernet Channel)
Note: Backwards compatible to all previous HDMI standards
—————————————————————————————————————————————————————————
HDCP (High-bandwidth Digital Content Protection)
HDCP 2.2 & 2.3 (backwards compatible to HDCP 1.4)
—————————————————————————————————————————————————————————
FRL6 (48Gbps) Formats Supported
8K60 4:2:0 12-bit, 8K30 4:4:4 12-bit
4K120 4:4:4 12-bit
—————————————————————————————————————————————————————————
FRL5 (40Gbps) Formats Supported
10K60 4:2:0 8-bit, 10K30 4:2:2 8/12-bit, 10K30 4:4:4 8-bit
8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit
5K120 4:2:2 8/12-bit, 5K120 4:4:4 8-bit
4K120 4:4:4 10-bit
—————————————————————————————————————————————————————————
FRL4 (32Gbps) Formats Supported
10K30 4:2:0 10/12-bit
8K60 4:2:0 8-bit, 8K30 4:2:2 8/12-bit, 8K30 4:4:4 8-bit
5K120 4:2:0 10/12-bit, 5K60 4:4:4 10/12-bit
4K120 4:4:4 8-bit, 4K120 4:2:2 8/12-bit
—————————————————————————————————————————————————————————
FRL3 (24Gbps) Formats Supported
10K30 4:2:0 8-bit
8K30 4:2:0 10/12-bit
5K120 4:2:0 8-bit, 5K60 4:2:2 8/12-bit, 5K60 4:4:4 8-bit
4K120 4:2:0 10/12-bit, 4K120 4:2:0 10/12-bit
—————————————————————————————————————————————————————————
FRL2 (18Gbps) Formats Supported
8K30 4:2:0 8-bit
5K60 4:2:0 8/12-bit, 5K30 4:2:2 8/12-bit, 5K30 4:4:4 8/12-bit
4K120 4:2:0 8-bit, 4K60 4:2:0 10/12-bit, 4K60 4:2:2 8/12-bit, 4K60 4:4:4 8/12-bit, 4K30 4:4:4 10/12-bit
1080p120 4:4:4 10/12-bit
—————————————————————————————————————————————————————————
FRL1 (9Gbps) Formats Supported
4K60 4:2:0 8-bit, 4K30 4:2:2 8/12-bit, 4K30 4:4:4 8-bit
1080p120 4:2:2 8/12bit, 1080p120 4:4:4 8-bit
—————————————————————————————————————————————————————————
Mechanical/Construction
Cable OD (Outer Diameter): 0.5m-2m: 5.2mm (34AWG FRL x 8), 3m: 6.1mm (30AWG FRL x 8), 5m: 8.0mm (26AWG FRL x 8)
HDMI Plugs: Gold-plated
HDMI Casing: Molding PVC Black
Retention Force (max): 3kg/6.6lbs
Bend Radius: 25mm (1.0 inch/34AWG)
Internal Wire Construction:
8C (4 x High-speed differential FRL pairs)
2C (1 x HEAC/eARC differential pair)
3C (3 x ´DDC-SDA´, ´DDC-SCL´ & ´CEC´)
1C (1 x ´+5V´)
—————————————————————————————————————————————————————————
Regulatory Compliance
EMI/EMC/Safety: CE, UL
Environmental: RoHS, WEEE
ESD Rating: 8kV contact (IEC 61000-4-2 Level 2)
Lead-free (Pb-free)
—————————————————————————————————————————————————————————

/uploads/FCKeditor/files/THX%20Interconnect%20(Copper)%20Ultra%20High%20Speed%20HDMI%20Cable%20-%20Product%20Brief(1).pdf

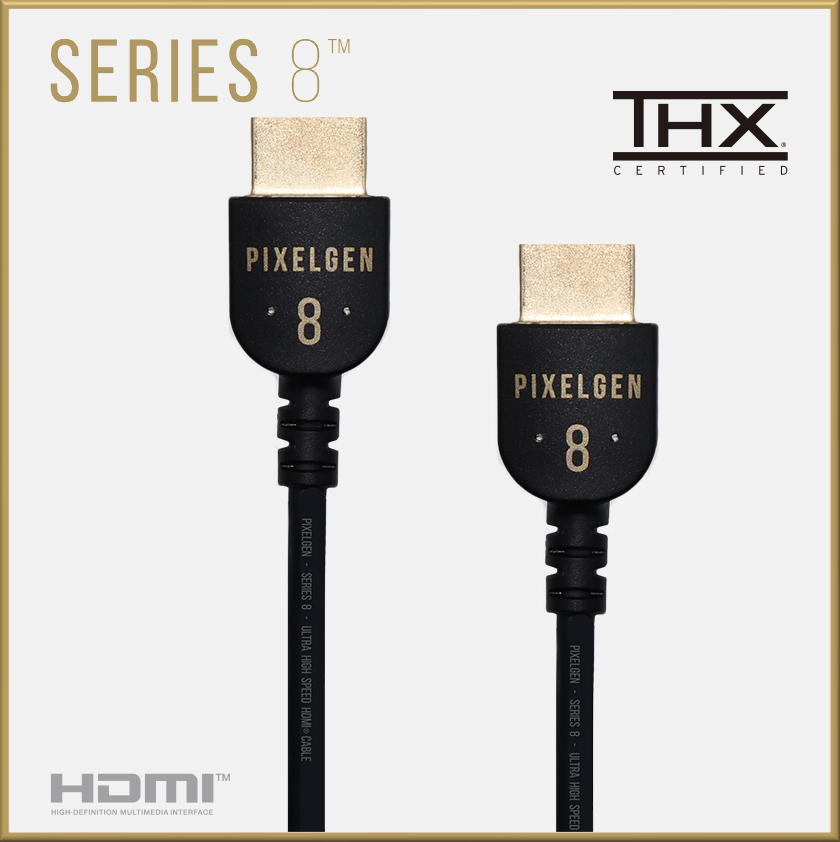

8 系列-超高速HDMI电缆

在48Gbps的速度下，(即使很短的)电缆也很重要。

Pixelgen 8 系列-超高速HDMI电缆是业内首款短距离THX认证8K互连电缆，经过精心设计，从高速、低速和DC功率角度确保最高水平的信号完整性和可靠性，同时保持业内最薄、最灵活的电缆结构。

8 系列-超高速HDMI线缆通过HDMI认证，支持所有HDMI 2.1功能。新的HDMI功能包括最大48Gbps FRL信号比特率、8K/10K(和4K120)支持、eARC、动态HDR以及全新的以游戏为中心的VRR、ALLM、QFT、QMS增强功能。

无论您是努力在专业定制机架设计中掌握完美的对称性，还是简单地连接到AV接收器或显示器的多个输入，Pixelgen系列电缆都能保证100%无压缩的8K高速信号传输。无论您是努力在专业定制机架设计中掌握完美的对称性，还是简单地连接到AV接收器或显示器的多个输入，Pixelgen系列电缆都能保证100%无压缩的8K高速信号传输。

HDMI® Certification
Ultra High Speed HDMI® Cable (0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, 2.0m/6.6ft)
*All HDMI 2.1 features
—————————————————————————————————————————————————————————
THX® Certification
THX® Certified 8K Interconnect (0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, 2.0m/6.6ft)
—————————————————————————————————————————————————————————
Max FRL (Fixed Rate Link)
12Gbps per lane (48Gbps Aggregate Bandwidth)
—————————————————————————————————————————————————————————
HDMI® 2.1 Features
Video: Up to 8K-10K BT.2020 Formats (Bandwidth/format details below),
Audio: eARC (Enhanced Audio Return Channel), Dolby Atmos, Dolby TrueHD, DTS:X, DTS Master
HDR: Dynamic (and Static) HDR, SBTM (Source-Based Tone Mapping)
Gaming: VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching)
Control: CEC (Consumer Electronics Control), HEC (HDMI Ethernet Channel)
Note: Backwards compatible to all previous HDMI standards
—————————————————————————————————————————————————————————
HDCP (High-bandwidth Digital Content Protection)
HDCP 2.2 & 2.3 (backwards compatible to HDCP 1.4)
—————————————————————————————————————————————————————————
FRL6 (48Gbps) Formats Supported
8K60 4:2:0 12-bit, 8K30 4:4:4 12-bit
4K120 4:4:4 12-bit
—————————————————————————————————————————————————————————
FRL5 (40Gbps) Formats Supported
10K60 4:2:0 8-bit, 10K30 4:2:2 8/12-bit, 10K30 4:4:4 8-bit
8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit
5K120 4:2:2 8/12-bit, 5K120 4:4:4 8-bit
4K120 4:4:4 10-bit
—————————————————————————————————————————————————————————
FRL4 (32Gbps) Formats Supported
10K30 4:2:0 10/12-bit
8K60 4:2:0 8-bit, 8K30 4:2:2 8/12-bit, 8K30 4:4:4 8-bit
5K120 4:2:0 10/12-bit, 5K60 4:4:4 10/12-bit
4K120 4:4:4 8-bit, 4K120 4:2:2 8/12-bit
—————————————————————————————————————————————————————————
FRL3 (24Gbps) Formats Supported
10K30 4:2:0 8-bit
8K30 4:2:0 10/12-bit
5K120 4:2:0 8-bit, 5K60 4:2:2 8/12-bit, 5K60 4:4:4 8-bit
4K120 4:2:0 10/12-bit, 4K120 4:2:0 10/12-bit
—————————————————————————————————————————————————————————
FRL2 (18Gbps) Formats Supported
4K60 4:2:0 8-bit, 4K30 4:2:2 8/12-bit, 4K30 4:4:4 8-bit
1080p120 4:2:2 8/12bit, 1080p120 4:4:4 8-bit
—————————————————————————————————————————————————————————
FRL1 (9Gbps) Formats Supported
4K60 4:2:0 8-bit, 4K30 4:2:2 8/12-bit, 4K30 4:4:4 8-bit
1080p120 4:2:2 8/12bit, 1080p120 4:4:4 8-bit
—————————————————————————————————————————————————————————
Mechanical/Construction
Cable Diameter: 4.5mm (OD)
HDMI Plugs: Gold-plated
HDMI Casing: Molding PVC Black
Retention Force (max): 3kg/6.6lbs
Bend Radius: 25mm (1.0 inches)
Internal Wire Construction:
8C (4 x High-speed differential FRL pairs) 34AWG,
2C (1 x HEAC/eARC differential pair) 34AWG,
3C (3 x ´DDC-SDA´, ´DDC-SCL´ & ´CEC´) 34AWG,
1C (1 x ´+5V´ 28AWG)
—————————————————————————————————————————————————————————
Regulatory Compliance
EMI/EMC/Safety: CE, UL
Environmental: RoHS, WEEE
ESD Rating: 8kV contact (IEC 61000-4-2 Level 2)
Lead-free (Pb-free)
—————————————————————————————————————————————————————————

/uploads/FCKeditor/files/SERIES%208%20-%20Ultra%20High%20Speed%20HDMI%20Cable%20-%20Product%20Brief.pdf

PXLGLASS™ 8 混合光纤/铜互连

48Gbps 时，长距离电缆(真的)很重要。

PXLGLASS 8 混合光纤/铜线互连-高速超HDMI电缆是业内首款有源长距离THX认证8K互连解决方案，能够扩展全带宽未压缩8K60，非常适合更大或更广阔的家庭影院。

PXLGLASS 8 经过HDMI认证，支持所有HDMI 2.1功能。新的HDMI功能包括最大48Gbps FRL信号比特率、8K/10K(和4K120)支持、eARC、动态HDR以及全新的以游戏为中心的VRR、ALLM、QFT、QMS增强功能。

PXLGLASS 8 使用优质4芯OC3玻璃光纤，将48Gbps(每根光纤12Gbps)高速FRL信号向下游传输至8K显示器，同时通过铜线交换关键低速通信，如HDCP 2.3、eARC和CEC。这种混合光纤/铜缆布线实施方法保证了几乎所有家庭影院设置或安装的所有8K应用的最高标准的健壮性、互操作性和可靠性。有7.6米、10米和15米三种尺寸可供选择(大约。50英尺)长度。

HDMI® Certification
Ultra High Speed HDMI® Cable (7.6m/25ft, 10m/33ft, 15m/49ft)
*All HDMI 2.1 features
—————————————————————————————————————————————————————————
THX® Certification
THX® Certified 8K Interconnect (7.6m/25ft, 10m/33ft, 15m/49ft)
—————————————————————————————————————————————————————————
Max FRL (Fixed Rate Link)
12Gbps per lane (48Gbps Aggregate Bandwidth)
—————————————————————————————————————————————————————————
HDMI® 2.1 Features
Video: Up to 8K-10K BT.2020 Formats (Bandwidth/format details below),
Audio: eARC (Enhanced Audio Return Channel), Dolby Atmos, Dolby TrueHD, DTS:X, DTS Master
HDR: Dynamic (and Static) HDR, SBTM (Source-Based Tone Mapping)
Gaming: VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching)
Control: CEC (Consumer Electronics Control), HEC (HDMI Ethernet Channel)
Note: Backwards compatible to all previous HDMI standards
—————————————————————————————————————————————————————————
HDCP (High-bandwidth Digital Content Protection)
HDCP 2.2 & 2.3 (backwards compatible to HDCP 1.4)
—————————————————————————————————————————————————————————
FRL6 (48Gbps) Formats Supported
8K60 4:2:0 12-bit, 8K30 4:4:4 12-bit
4K120 4:4:4 12-bit
—————————————————————————————————————————————————————————
FRL5 (40Gbps) Formats Supported
10K60 4:2:0 8-bit, 10K30 4:2:2 8/12-bit, 10K30 4:4:4 8-bit
8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit
5K120 4:2:2 8/12-bit, 5K120 4:4:4 8-bit
4K120 4:4:4 10-bit
—————————————————————————————————————————————————————————
FRL4 (32Gbps) Formats Supported
10K30 4:2:0 10/12-bit
8K60 4:2:0 8-bit, 8K30 4:2:2 8/12-bit, 8K30 4:4:4 8-bit
5K120 4:2:0 10/12-bit, 5K60 4:4:4 10/12-bit
4K120 4:4:4 8-bit, 4K120 4:2:2 8/12-bit
—————————————————————————————————————————————————————————
FRL3 (24Gbps) Formats Supported
10K30 4:2:0 8-bit
8K30 4:2:0 10/12-bit
5K120 4:2:0 8-bit, 5K60 4:2:2 8/12-bit, 5K60 4:4:4 8-bit
4K120 4:2:0 10/12-bit, 4K120 4:2:0 10/12-bit
—————————————————————————————————————————————————————————
FRL2 (18Gbps) Formats Supported
8K30 4:2:0 8-bit
5K60 4:2:0 8/12-bit, 5K30 4:2:2 8/12-bit, 5K30 4:4:4 8/12-bit
4K120 4:2:0 8-bit, 4K60 4:2:0 10/12-bit, 4K60 4:2:2 8/12-bit, 4K60 4:4:4 8/12-bit, 4K30 4:4:4 10/12-bit
1080p120 4:4:4 10/12-bit
—————————————————————————————————————————————————————————
FRL1 (9Gbps) Formats Supported
4K60 4:2:0 8-bit, 4K30 4:2:2 8/12-bit, 4K30 4:4:4 8-bit
1080p120 4:2:2 8/12bit, 1080p120 4:4:4 8-bit
—————————————————————————————————————————————————————————
Mechanical/Construction
Directional Cable: Please note that PXLGLASS™8 is a unidirectional cable. Cable ends labelled “SOURCE” (to attach to HDMI UHD Blu-ray, for example) & ”DISPLAY” (to attach to HDMI TV/Projector, for example)
Cable Diameter: 7.6m/10.0m (6mm OD), 15.0m (7mm OD)
HDMI Plugs: Gold-plated
HDMI Casing: Zinc Alloy
Retention Force (max): 3kg/6.6lbs
Optical OC3 4-core fiber: High-speed FRL Signalling
Copper (28-32AWG): DC(+5V/HPD) & Low-speed(DDC/CEC/HEAC)
—————————————————————————————————————————————————————————
Regulatory Compliance
EMI/EMC/Safety: CE, UL
Environmental: RoHS, WEEE
ESD Rating: 8kV contact (IEC 61000-4-2 Level 2)
Lead-free (Pb-free)
Fire Rating (NEC): CL2 (In-wall Rated)
—————————————————————————————————————————————————————————

/uploads/FCKeditor/files/PXLGLASS%208%20Hybrid%20Fiber-Copper%20Interconnect%20-%20Product%20Brief.pdf
