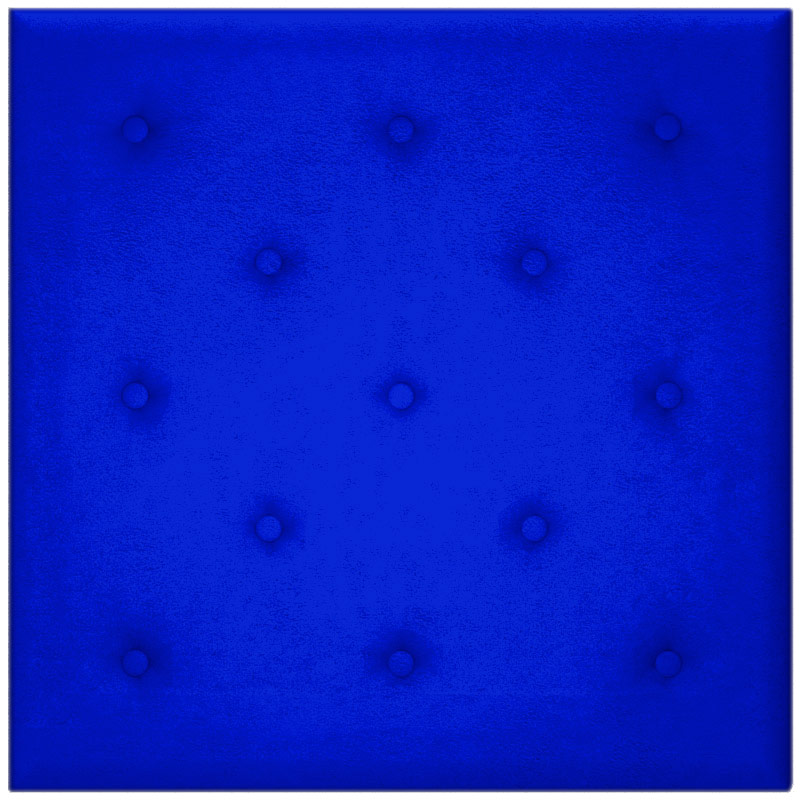

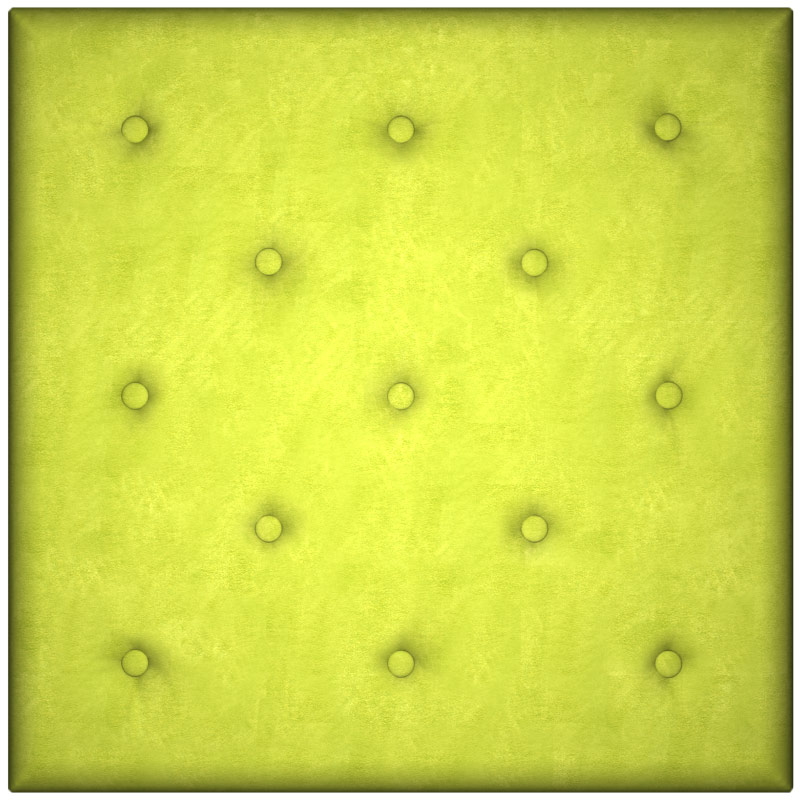

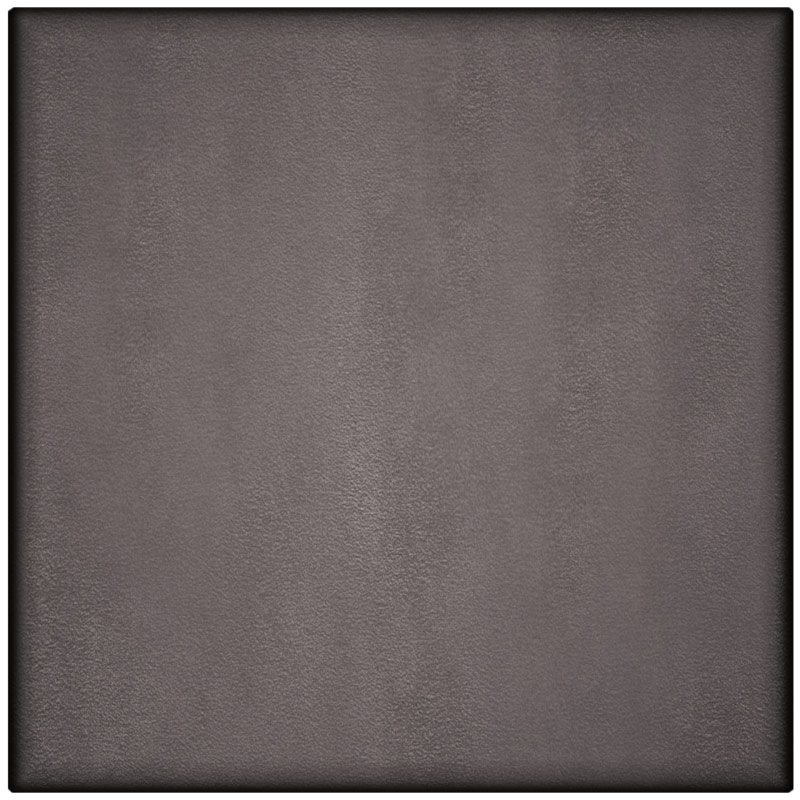

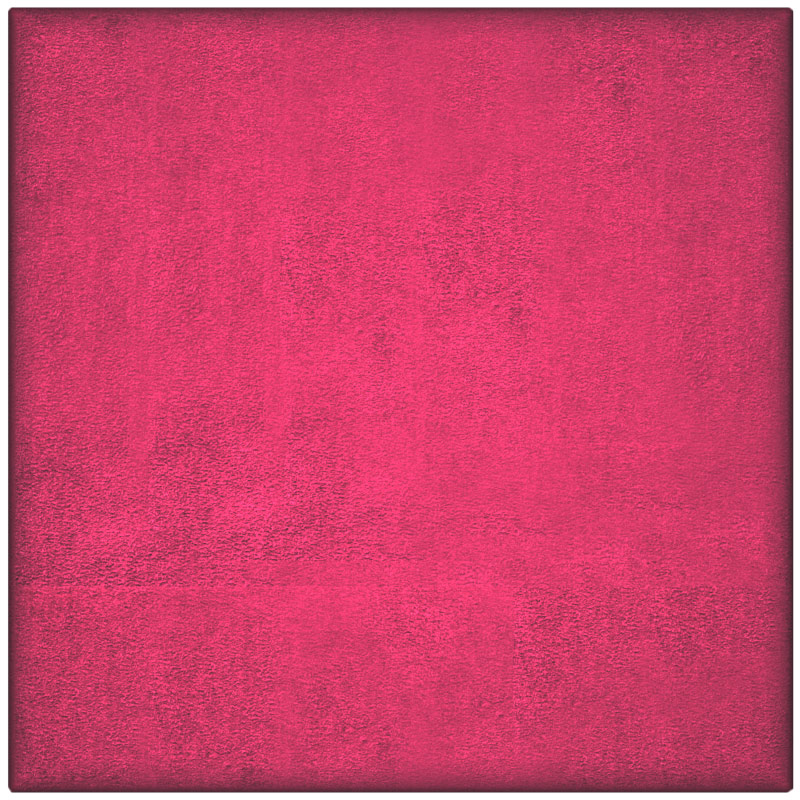

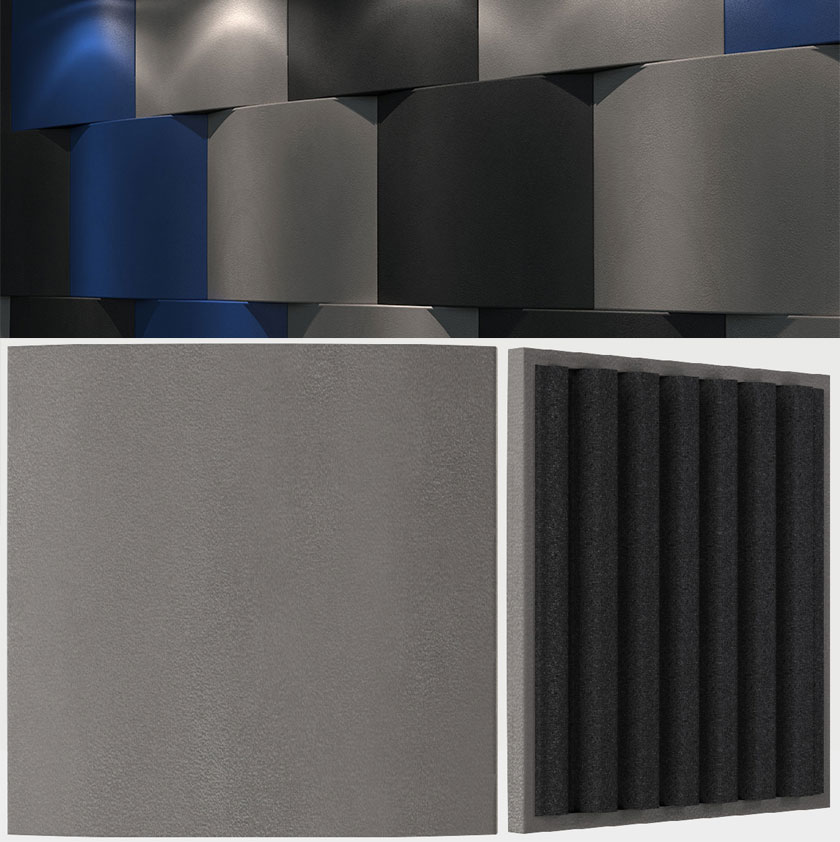

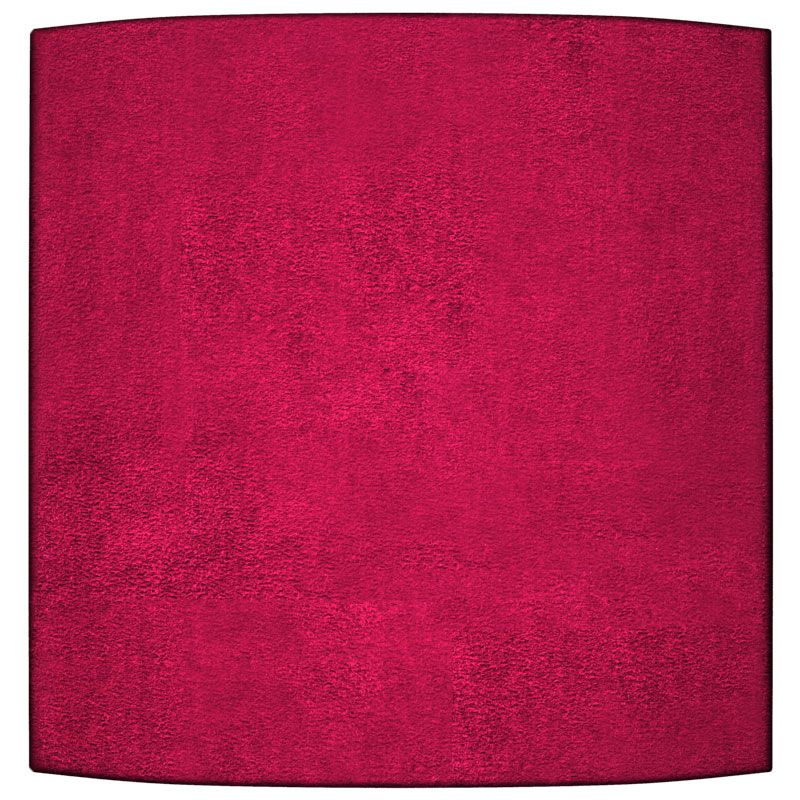

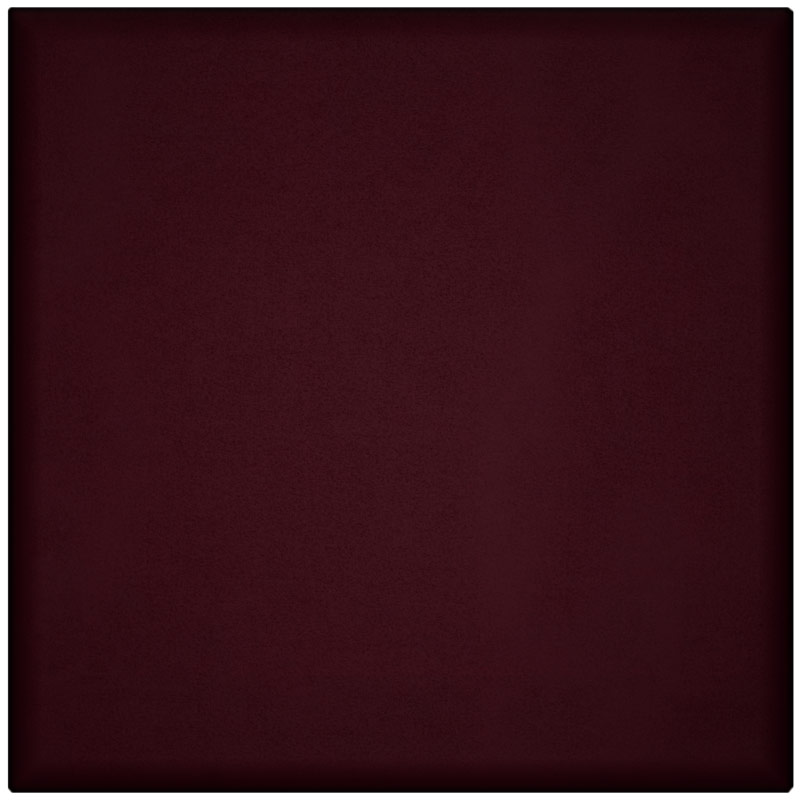

Dawson - Absorber

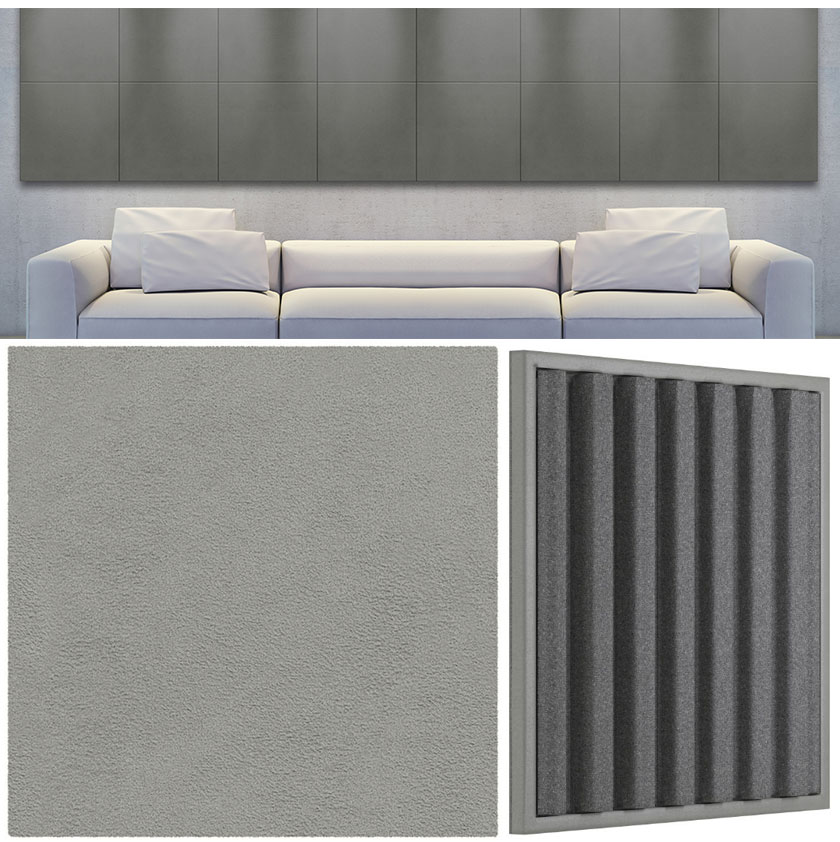

Dawson Absorber was designed to control noise, sound reflections and excessive reverberation, in a decorative manner. Manufactured with premium materials and carefully wrapped with acoustic fabric, this product has an outstanding performance from mid to high frequencies.
Using a patented technique, the rear crenellated surface of the panel was designed to optimise performance by increasing surface area, reduce raw material waste and improve shipping, reducing packaging size and increasing the products resistance. Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations. Available in 7 standard colours, plus customised colours on demand.
Features
Absorption range: 160 Hz to 5000 Hz
Acoustic Class: B
Absorption coefficient (αw) = 0,85
Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS (UK)
Material: Fabric FG or Fabirc FR+
Fixing System: Mechanical or Chemical
Dimensions: 595x595x86mm (6un/Box)
An elegant premium acoustic treatment.
Finishing Material:
Fabric FG (Furniture grade)
Fabric FR+ (Improved Fire Rated)
Fire rate classification:
FG | Furniture Grade Class
FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7)

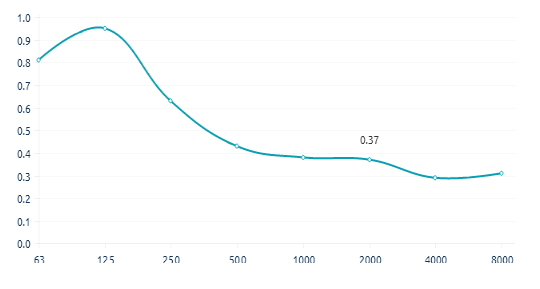

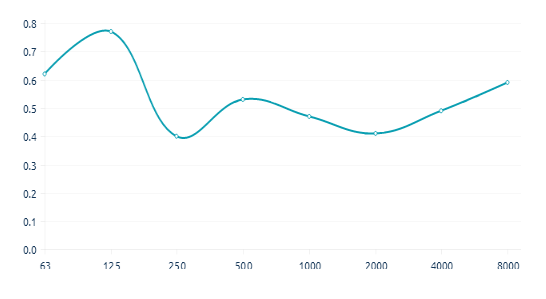

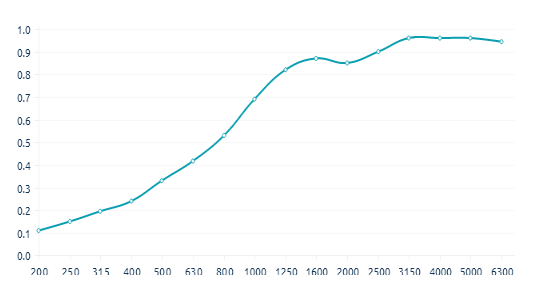

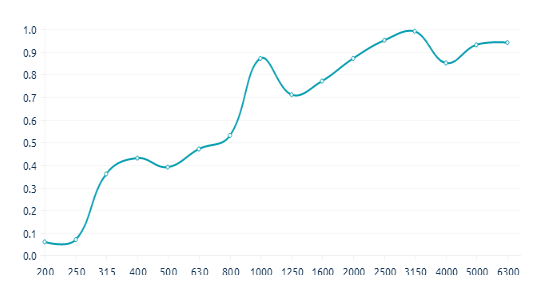

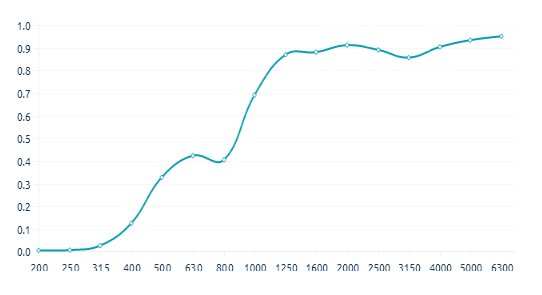

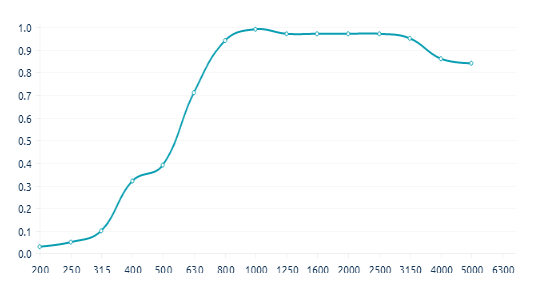

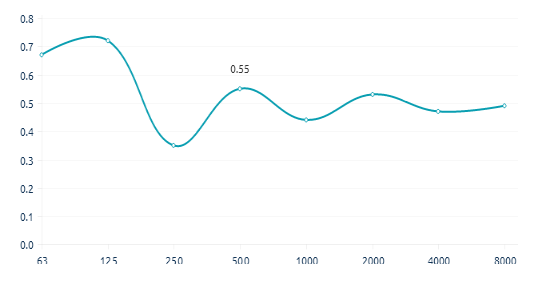

Acoustic performance:
Absorption range | 160Hz to 5000Hz
Acoustic class | B
Absorption coef. (αw) |0,85(M)
FG
Dim. | 595x595x86mm
Weight | Kg*
Units per box | 6
Box Weight | 9,10 Kg*
FR+
Dim. | 595x595x86mm
Weight | Kg*
Units per box | 6
Box Weight | 9,10 Kg*
Installation - Mechanical or Chemical
Packing Dimensions - 640x385x640mm
* Approximate weight
