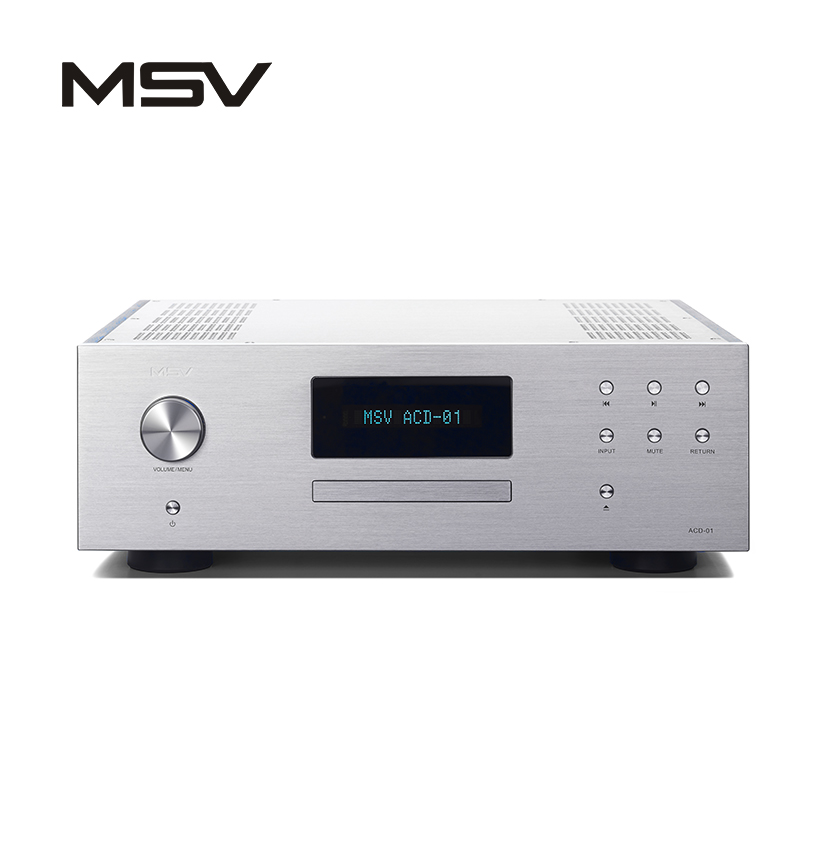

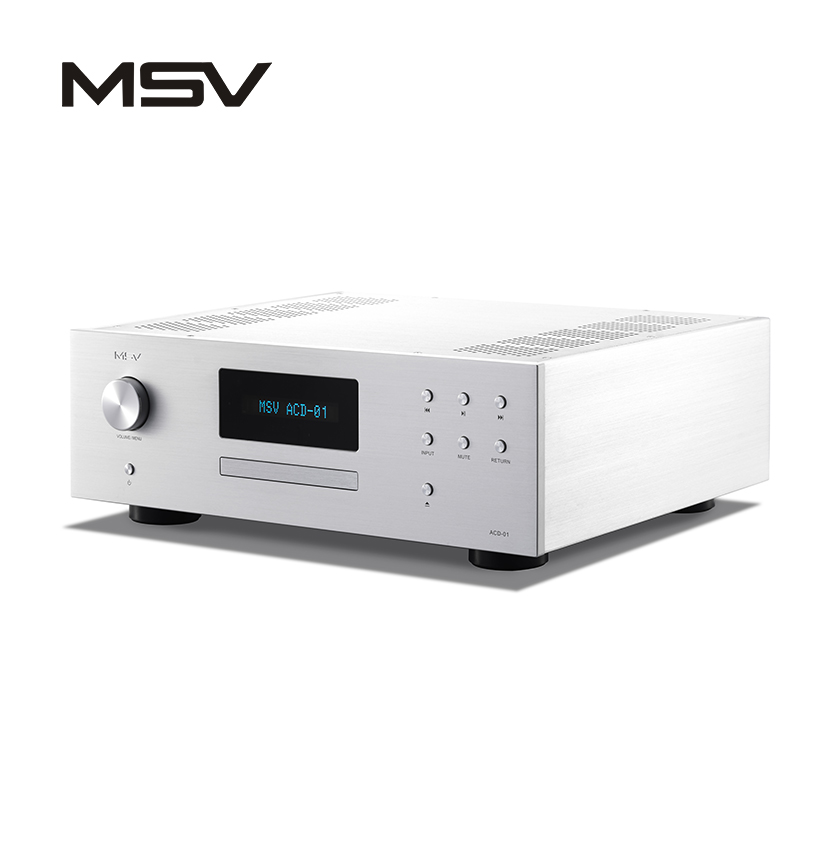

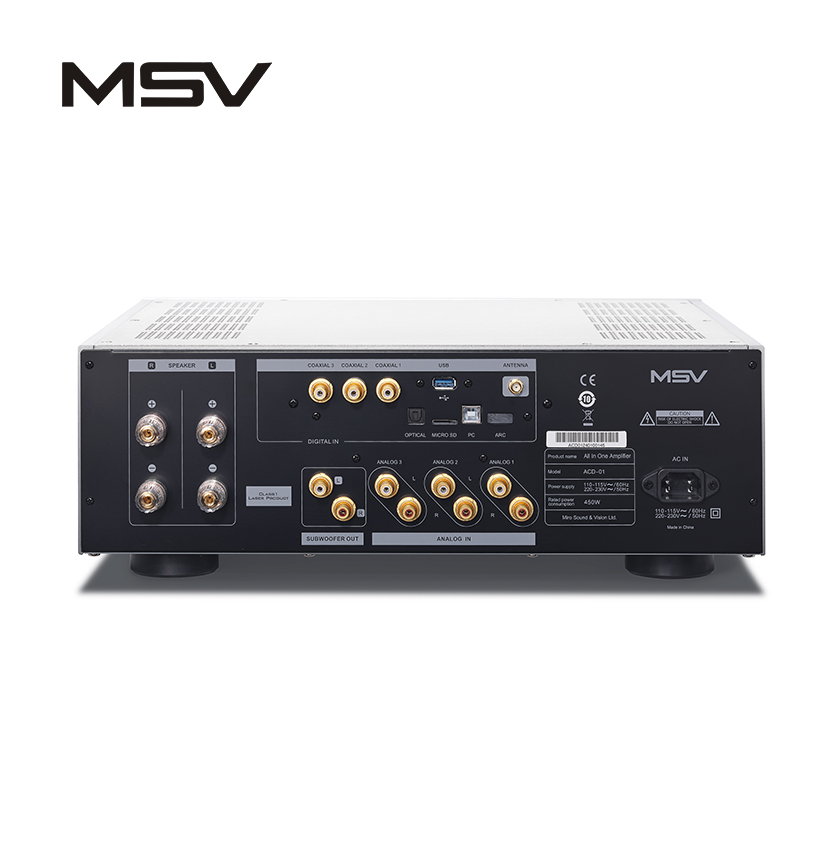

Introducing the ACD-01, the ultimate All In One amplifier for your digital Hi-Fi needs.
The ACD-01 can play CDs, stream media, decode audio signals, and amplify sound with ease.
It features a stable and mature circuit design, high-quality and durable materials, and a delicate
and round sound quality. The ACD-01 is a masterpiece of digital Hi-Fi engineering, offering you
an exceptional value for money.
Specification
SN:≥95dB(A weight, rated source electromotive force 1V)
Frequency response:10Hz-50KHz(+1/-3dB)
Distortion:≤0.05%(1kHz,A weight)
Output power:130W(8Ω 1 channel,1kHZ,THD =1%)
Input impedance:10K
Rated load impedance:8Ω
Gain:41dB +1dB
Max consumption:370W
Power voltage:110V-115V~/60Hz or 220V-230V~/50Hz
Weight:Net Weight :13.4kg/ Gross Weight :15.4kg
Dimensions(WxDxH):
Unit size 1: 430x360x132mm(exclude feet, knob, sockets)
Unit size 2: 430x397x151mm(include feet, knob, sockets)
Packing size: 546x483x232mm
